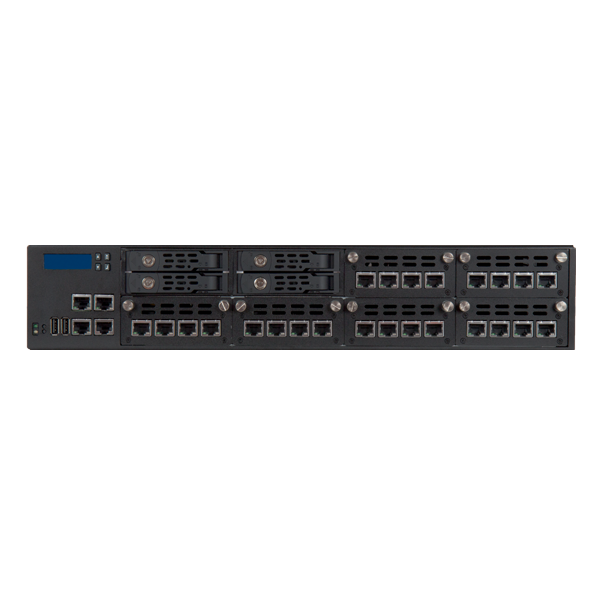

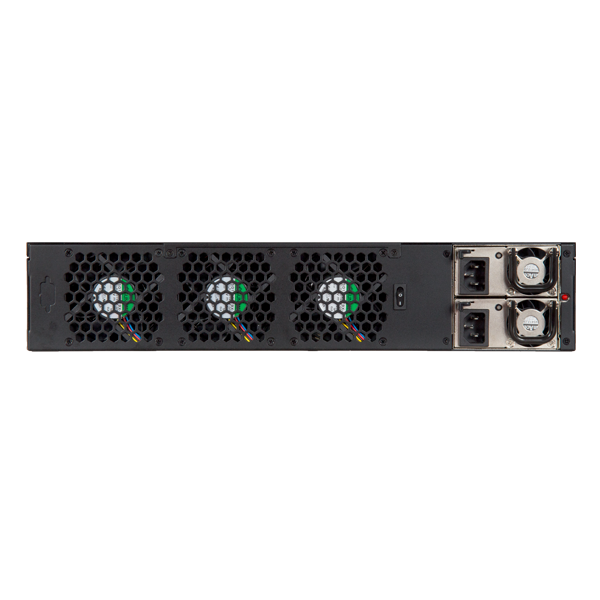

CAR-6002
Intel Xeon E5 2U Appliance. Support up to 50 GbE Ports.
- Intel Xeon Processor E5 Family (Haswell-EP / Broadwell-EP)
- 8 x DDR4 ECC RDIMMs (Up to 256GB)
- Up to 50 x RJ45/SFP GbE Ports
- Redundant Power Supply Unit & System Management (IPMI 2.0) Support
| Platform | |
| Processor | Intel Xeon Processor E5 Family (Haswell-EP / Broadwell-EP) |
| Chipset | Intel C612 PCH (Wellsburg) |
| System Memory | 8 x DDR4 ECC 2133MHz RDIMMs, up to 256GB |
| Ethernet Port | Up to 50 x RJ45/SFP GbE Ports |
| Bypass | Based on CASwell NIC Module or Standard add-on card |
| Expansion | Up to 4 PCIe Gen3 x8 for CASwell NIC Module Up to 2 PCIe Gen2 x8 for CASwell NIC Module |
| Storage Device | 4 x 2.5″ Swappable SATA/SAS HDDs 1 x CF Socket |
| Power Supply | 420W Redundant PSU |
| Dimension (WxDxH) | 438mm x 550mm x 89mm (17.25’’ x 21.65’’ x 3.5’’) |
| I/O | |
| Serial Port | 1 x RJ-45 System Console Port |
| USB Port | 2 x USB 2.0 Ports |
| Display Output | 1 x VGA Port (Optional from LOM or VGA module) |
| LCD Panel | 128 x 32/64 Graphic, 2 x 16 Characters |
| LED | Power / HDD / Ethernet |
| LOM | IPMI 2.0 w/ GbE speed (Optional) |
| Operation & Certifications | |
| Operating Environment | Temperature: 0 – 40°C (32 – 104°F) Humidity: 20 – 90% RH |
| Storage Environment | Temperature: -10 – 70°C (14 – 158°F) Humidity: 5 – 95% RH @ 55°C |
| Certification | CE/FCC/UL |
| OS Support | Linux Kernel |
| Models | Core/Threads | Frequency (Max) | Cache | TDP |
| Intel Xeon E5-2699 v4 | 12C | 2.50GHz (3.30GHz) | 30MB | 120W |
| Intel Xeon E5-2683 v4 | 16C | 2.10GHz (3.0GHz) | 40MB | 120W |
| Intel Xeon E5-2680 v4 | 14C | 2.40GHz (3.30GHz) | 35MB | 120W |
| Intel Xeon E5-2658 v4 | 14C | 2.30GHz (3.30GHz) | 35MB | 105W |
| Intel Xeon E5-2620 v4 | 8C | 2.10GHz (3.0GHz) | 20MB | 85W |
| Intel Xeon E5-2618L v4 | 10C | 2.20GHz (3.20GHz) | 25MB | 75W |
| Intel Xeon E5-2680 v3 | 12C | 2.50GHz (3.30GHz) | 30MB | 120W |
| Intel Xeon E5-2658 v3 | 12C | 2.20GHz (2.90GHz) | 30MB | 105W |
| Intel Xeon E5-2650 v3 | 8C | 2.0GHz (2.8GHz) | 20MB | 95W |
| Intel Xeon E5-2648L v3 | 12C | 1.80GHz (2.5GHz) | 30MB | 75W |
| Intel Xeon E5-2640 v3 | 8C | 2.60GHz (3.40GHz) | 20MB | 90W |
| Intel Xeon E5-2620 v3 | 6C | 2.40GHz (3.20GHz) | 15MB | 85W |
| Intel Xeon E5-2628L v3 | 10C | 2.00GHz (2.50GHz) | 25MB | 75W |
| Intel Xeon E5-2618L v3 | 8C | 2.30GHz (3.40GHz) | 20MB | 75W |
| Intel Xeon E5-2609 v3 | 6C | 1.90GHz | 15MB | 85W |
| Intel Xeon E5-2608L v3 | 6C | 2.00GHz | 15MB | 52W |
