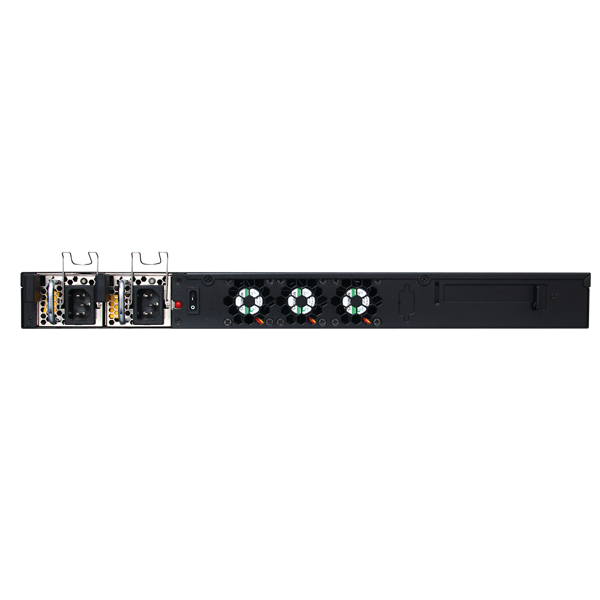

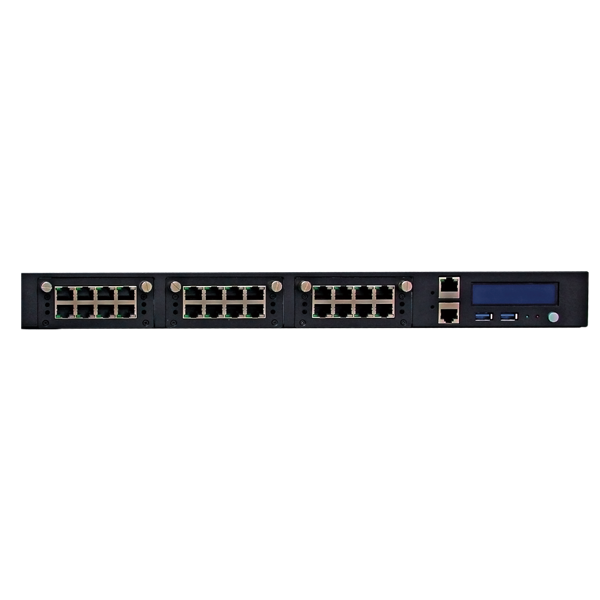

CAR-4020
Intel Haswell-EP 1U Appliance, Support up to 24 GbE Ports
- Intel 4th Generation (Haswell Series) Core Processor
- 4 x DDR3 ECC 1600MHz DIMMs, up to 32GB
- Up to 24 x RJ45/SFP GbE Ports
- Tilera Gx36 Many-core Network Adapter Support
- Redundant Power Supply Unit & System Management (IPMI 2.0) Support
| Platform | |
| Processor | Intel Xeon E3 v3, Core i5/i3, Pentium Processor (Haswell) |
| Chipset | Intel C226 PCH |
| System Memory | 4 x DDR3 ECC 1600MHz DIMMs, up to 32GB |
| Ethernet Port | Up to 24 x RJ45/SFP GbE Ports |
| Bypass | Based on CASwell NIC Module or Standard add-on card |
| Expansion | Up to 2 PCIe Gen3 x8 for CASwell NIC Module Up to 1 PCIe Gen2 x4 for CASwell NIC Module Up to 1 PCIe Gen2 x8 for Standard NIC Module |
| Storage Device | 4 x 2.5” SATA HDDs or 1 x 3.5” SATA HDDs 1 x CF Socket |
| Power Supply | 300W Redundant PSU 250W 80Plus ATX 250W DC 48V input |
| Dimension (WxDxH) | 438mm x 483mm x 44mm (17.14’’ x 19.02’’ x 1.73’’) |
| I/O | |
| Serial Port | 1 x RJ-45 / Micro USB System Console Port 1 x 2×5 pin-header for EZIO |
| USB Port | 2 x USB 3.0 Ports |
| LCD Panel | 128 x 32/64 Graphic, 2 x 16 Characters |
| LED | Power / HDD |
| LOM | IPMI 2.0 w/ GbE speed (Optional) |
| Operation & Certifications | |
| Operating Environment | Temperature: 0 – 40°C (32 – 104°F) Humidity: 20 – 90% RH |
| Storage Environment | Temperature: -10 – 70°C (14 – 158°F) Humidity: 5 – 95% RH @ 55°C |
| Certification | CE/FCC/UL |
| OS Support | Linux Kernel |
| Models | Core/Threads | Frequency (Max) | Cache | TDP |
| Intel Xeon E3-1275 v3 | 4C | 3.50GHz (3.90GHz) | 8MB | 84W |
| Intel Xeon E3-1225 v3 | 4C | 3.20GHz (3.60GHz) | 8MB | 84W |
| Intel Xeon E3-1268L v3 | 4C | 2.30GHz (3.30GHz) | 8MB | 45W |
| Intel Core i3-4330 | 2C | 3.50GHz | 4MB | 54W |
| Intel Pentium G3420 | 2C | 3.20GHz | 3MB | 53W |
| Intel Core i5-4570TE | 2C | 2.70GHz (3.30GHz) | 4MB | 35W |
| Intel Core i3-4330TE | 2C | 2.40GHz | 4MB | 35W |
| Intel Pentium G3320TE | 2C | 2.30GHz | 3MB | 35W |
